Cryosystems

Cryosystems

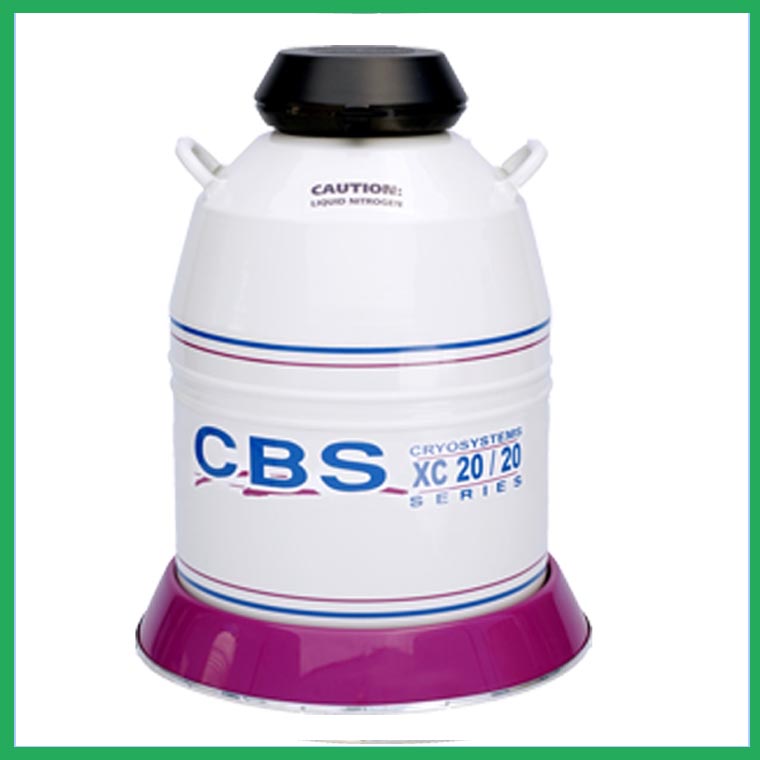

The Cryosystems Series tanks have capacities ranging from 700–5000 straws and 210 to over 6,000 vials (2 ml.). Manufactured to a world class level of excellence and backed by an indus¬try-leading vacuum warranty. These durable, lightweight units can be relied on to perform in the most demanding of environments..

Salient Features:

  • Lockable lids
  • Low liquid nitrogen consumption
  • Lightweight aluminum construction
  • Easy access to store or retrieve samples
  • Square racks with boxes or canister and cane storage
  • Rollerbase / Wheeled Cart , Cryogloves, CryoApron and Face Shield also available as an optional item
  • Alarm Options:
    • LA-2B  or  BAT-1B (For XC or Classic Series)
    • CRYO-LA  or  CRYO-BAT (For Value Added Series)

SPECIFICATIONS OF CRYOSYSTEM

Model

XC 20/20

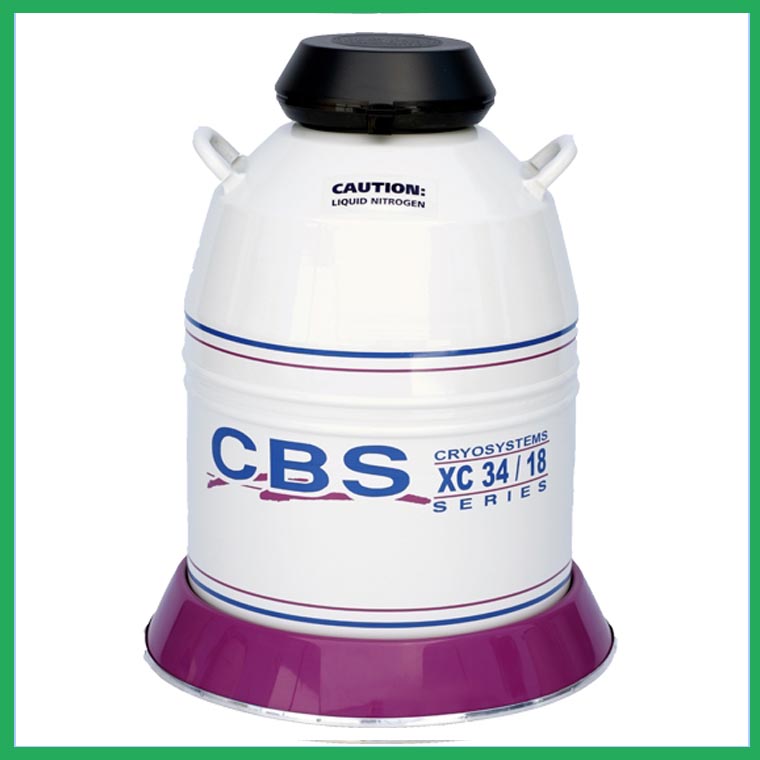

XC 34/18

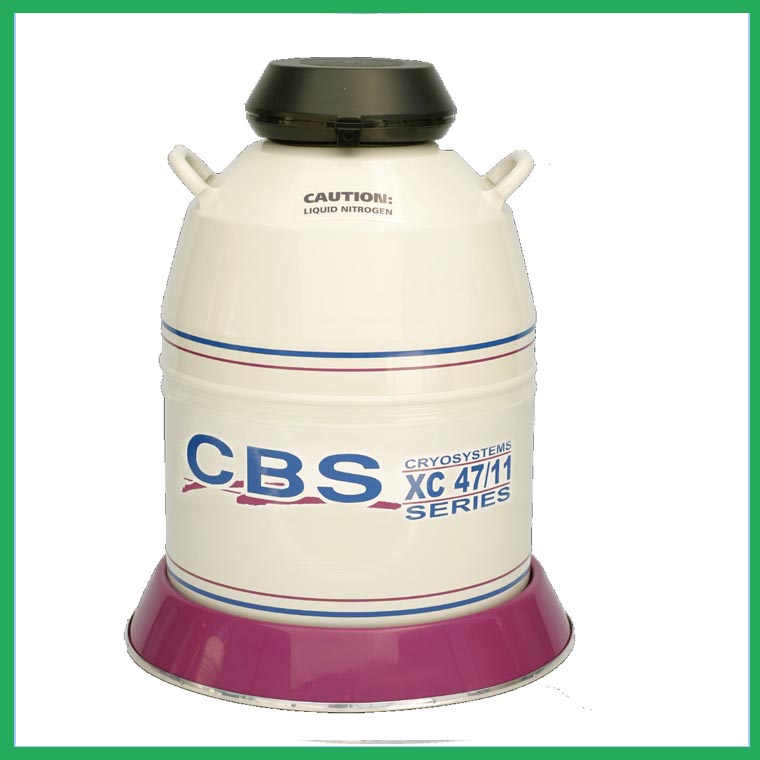

XC 47/11

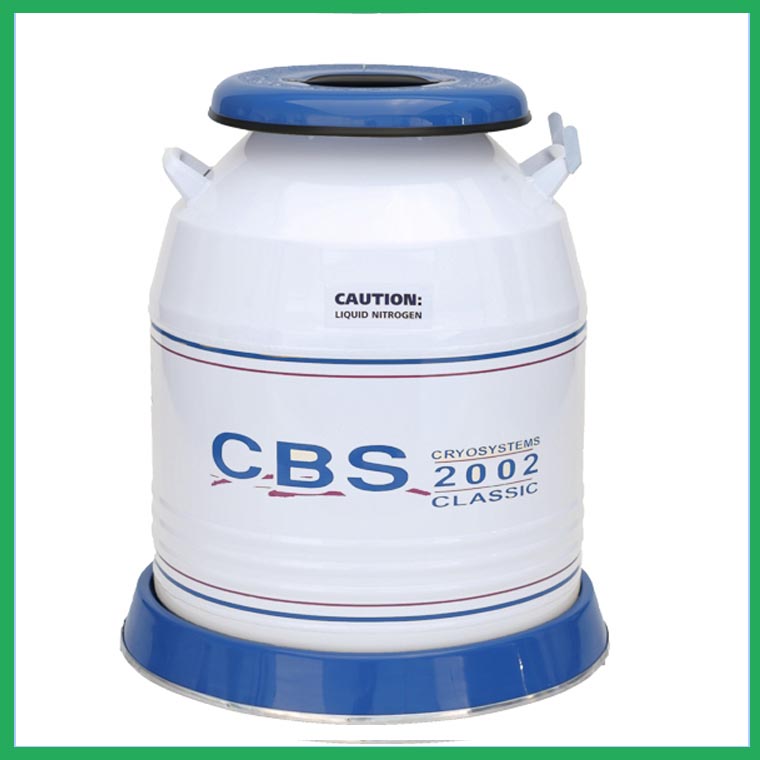

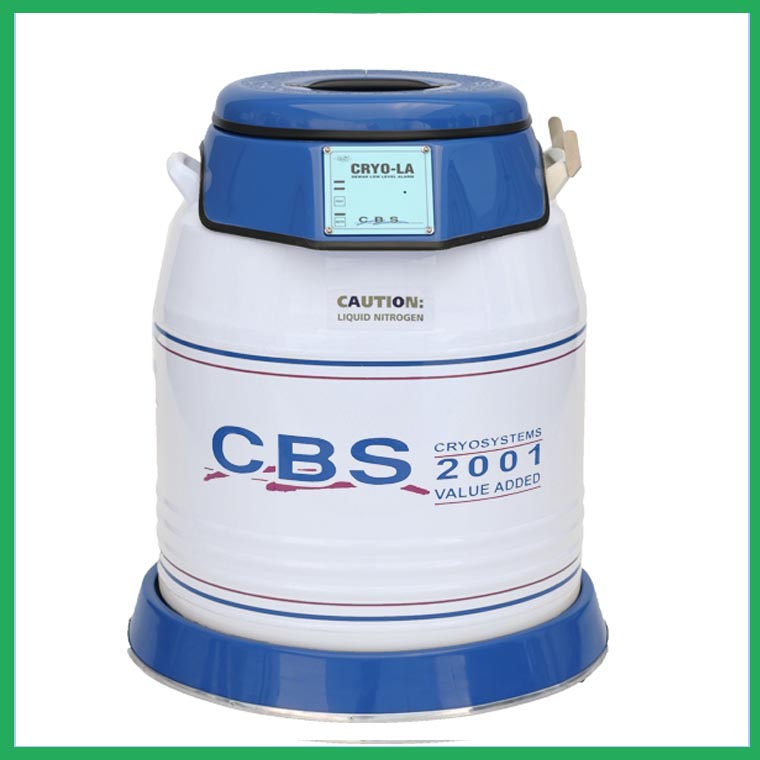

2002/2001
Classic / Value Added

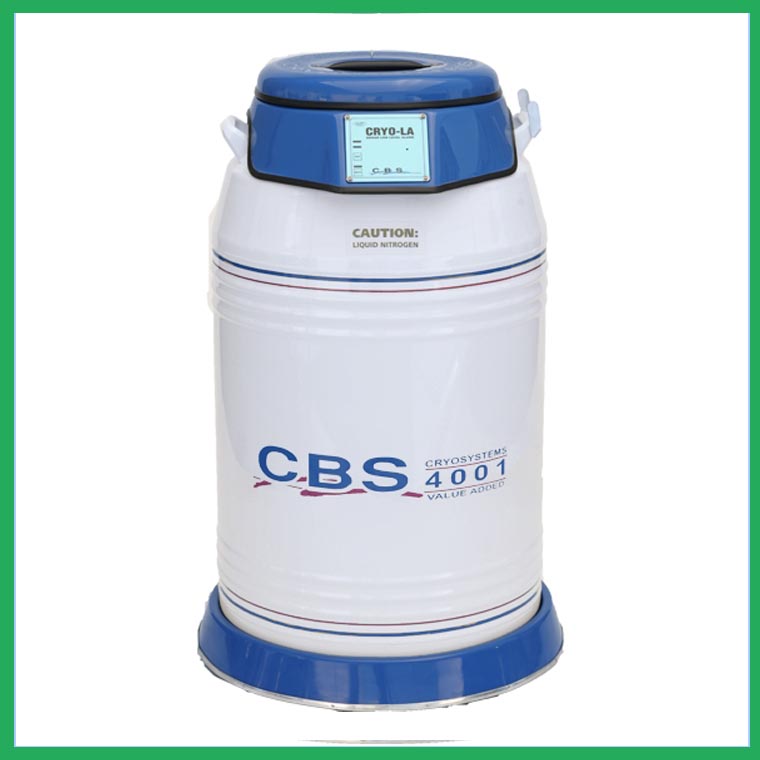

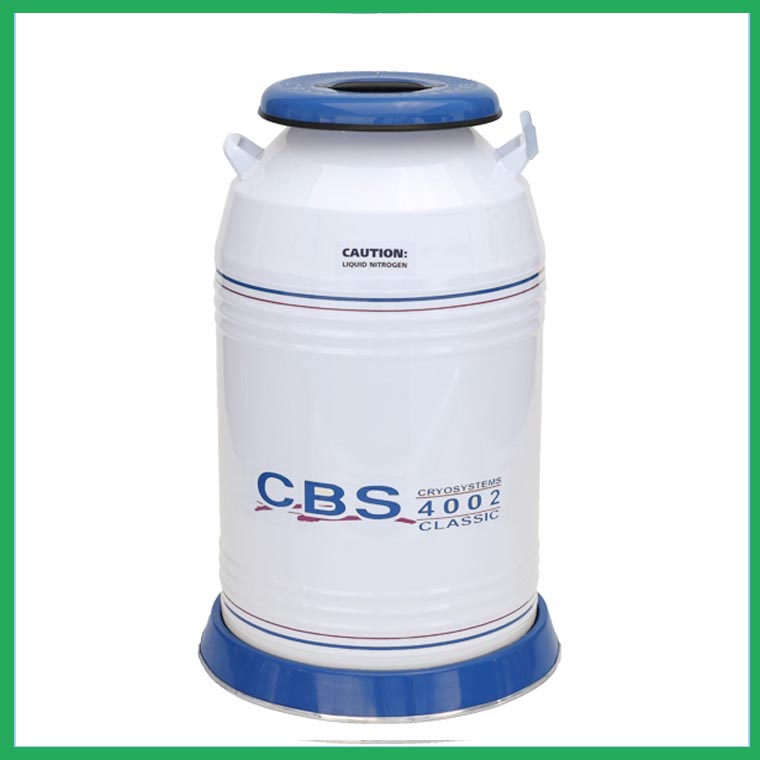

4002/4001
Classic / Value Added

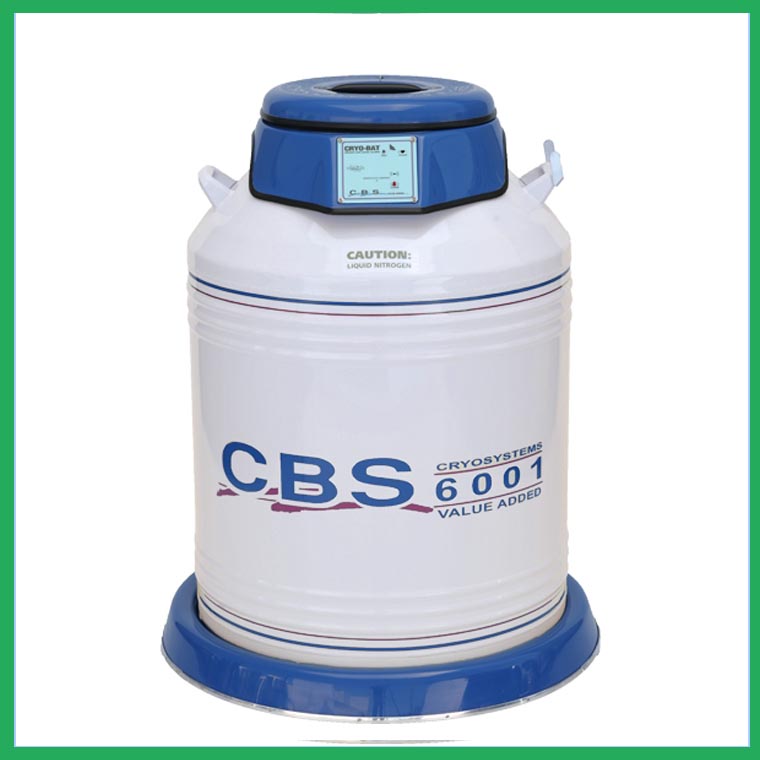

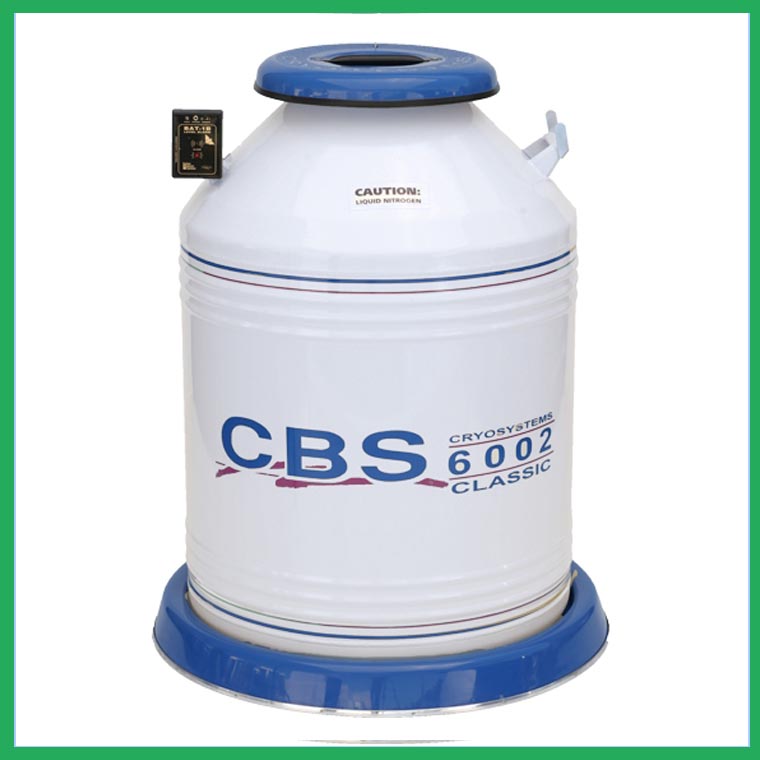

6002/6002
Classic / Value Added

Maximum number of racks

N/A

N/A

6

4

4

6

No. of Boxes per Rack

N/A

N/A

5

5

10

10

Number of canisters

6

6

6

N/A

N/A

N/A

Number of 1.2 & 2 ml vials 6 racks

N/A

N/A

750

2000

4000

6000

Number of 1.2 & 2 ml vials 5/cane

210

630

1,320

N/A

N/A

N/A

Number of 1/2 cc straws 10/ cane

780

2,100

4,500

N/A

N/A

N/A

Number of 1/2 cc straws 1 level bulk

1,122

3,000

6,216

N/A

N/A

N/A

Liquid nitrogen capacity (litres)

20.5

34.8

47.4

61

121

175

Static evaporation rate(litres per day)

0.09

0.18

0.39

0.85

0.99

0.99

Static Holding Time (Approx. days)

227

193

121

71

122

176

Normal working days

140

123

76

38

70

104

Neck opening in (mm)

2.18 (55.4)

3.5 (89)

5 (127)

8.5 (216)

8.5 (216)

8.5 (216)

Overall height in (mm )

25.7 (652)

26.6 (675)

26.5 (673)

28.5 (723)

39.5 (1,003)

39.5 (1,003)

Outside diameter in (mm)

14.5 (368)

18.2 (646)

20 (508)

22 (559)

22 (559)

26 (665)

Canister height in (mm)

11 (279)

11 (279)

11 (279)

N/A

N/A

N/A

Canister diameter in (mm)

1.65 (41.9)

2.81(71)

4 (102)

N/A

N/A

N/A

Weight empty lbs. (kg)

26 (11.8)

34 (15.4)

36 (16.4)

58 (26.3)

81 (36.7)

103 (46.7)

Weight full lbs. (kg)

62.5 (28.3)

96 (43.5)

120 (54.6)

182 (82.5)

300 (136)

425 (193)
