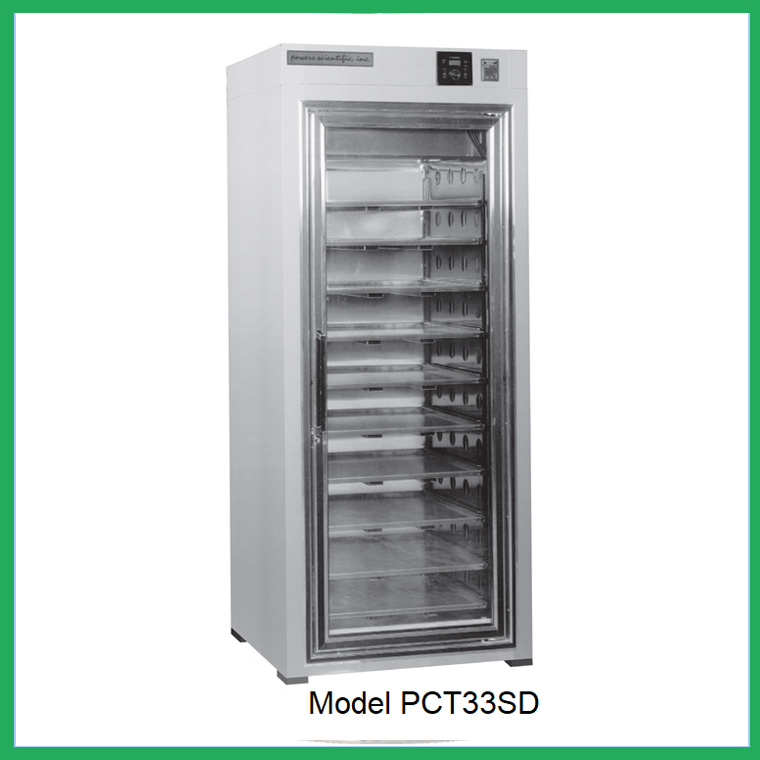

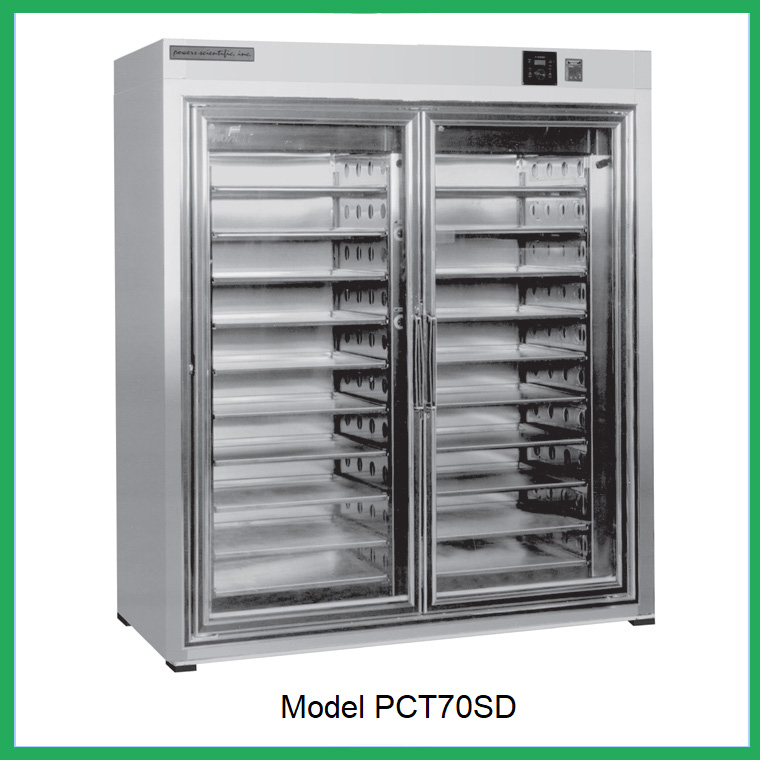

Protein Crystal Growth Chambers: Protein crystals have been grown in our chambers for over 25 years. The uniform temperature and low vibration environment these models provide allows for optimum crystalline development.
Ten lipped stainless steel trays per door offer 38 or 75 ft2 of shelf space, with horizontal air flow across each tray. Microprocessor temperature control combined with horizontal air flow maintains uniformity to ±1°C of setpoint. A hi/low temperature alarm monitors chamber temperature and electronic failsafes shut it down to preserve temperature in the rare event of a temperature excursion. These models sit on vibration absorbing pads to isolate them from floor vibrations, and metal to metal contact inside the chamber is also dampened. Options such as a chart recorder, RS-232 or re-transmits for computer monitoring and recording, solid doors, access ports, lockable Plexiglas© control cover, etc. are available.

 Salient Features:

• Microprocessor controlled 5-40°C temperature range, ± 0.5°C at the sensor
• Audible/visual temperature alarm with relay and electronic failsafe setpoints
• Stainless steel interior with grey powder coat steel exterior
• Ten stainless steel lipped trays per door, gliding type
• Double pane hinged glass door with door lock
• Vibration dampening at all metal to metal contact points
• Padded feet (one inch high) to isolate chamber from floor vibrations
• Electric condensate evaporator
• Pre-charged condensing unit for mounting on wall next to chamber to isolate it from vibration
• Two Models available in 880 Litres and 2040 Litres capacity

• Low Vibration Refrigerated Incubators: Powers ScientificVibration Reduced Refrigerated incubators have a temperature range of 2-50°C, ± 1°C in air, measured at the sensor. These versatile chambers can be adapted to create environments requiring the vibration resistance necessary for applications such as protein crystal growth. These models sit on vibration absorbing pads to isolate them from floor vibrations, and all metal to metal contact inside the chamber is dampened. A microprocessor controls and displays the chamber temperature, and high and low temperature mechanical failsafes protect chamber contents in the unlikely event of a temperature excursion.

 Salient Features:

• Temp. Range : 2°C to 50°C controlled to +/- 0.1°C
• PID Microprocessor Controller for precise temperature control with overheating protection
• Available in Single door, Double Door or Triple Door configuration based on the Volume of Incubator
• Nine Models available in various capacities from 285 Litres, 680 Litres, 765 Litres, 1220 Litres, 1470 Litres, 1670 Litres, 1780 Litres, 2065 Litres, 2235 Litres
• Option available to choose either Solid Door or Glass Door based on the Application.
